OpenCV perspective warping: keystone effect and rotation around center
In this blog post, I am going to show two examples of using OpenCV’s functionality for prespective warping (cv2.getPerspectiveTransform and cv2.warpPerspective). We will apply perspective transformation to an image to (1) simulate a keystone effect, i.e. a camera looking at an object from an angle, and (2) to simulate rotation of an object around its center (which will requre some additional rigid transformations).
Let’s start with the initial imports:
import cv2
import numpy as np
import skimage
import itertools
from matplotlib import pyplot as plt
np.set_printoptions(formatter={"float_kind": "{: .3f}".format})
We are going to work with a synthetic image of a chessboard surrounded by a green background and a white rim:
def create_base_image(w, h, rim, backgroud_color, top=50, left=100):
im = np.ones((h, w, 3), dtype=np.uint8) * 255
im[rim:h-rim, rim:w-rim] = backgroud_color
cb = skimage.data.checkerboard()
cb_w, cb_h = cb.shape
for channel in range(3):
im[top:top+cb_w, left:left+cb_h, channel] = cb
return im

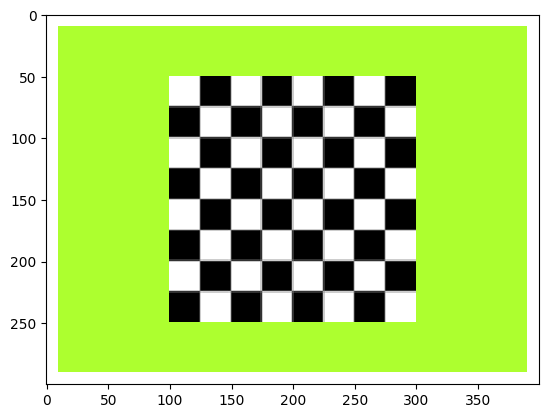

The image is 400 x 300 pixels, with the rim of 10 pixels on each side:
w = 400
h = 300
rim = 10
im = create_base_image(w, h, rim, backgroud_color=(173, 255, 47))
plt.imshow(im, interpolation='none')
plt.show()
Perspective transformation with OpenCV require a 3 by 3 matrix, which can be obtained from four src and four dst points (describing the same locations appearing in the original and the transformed image).
For a keystone effect, we will select the cornes of the green rectangle as our src points, and a copy of those with the two top points moved closer together as dst.
last_x_before_rim = w - rim - 1
last_y_before_rim = h - rim - 1
src = np.array([
[rim, rim],
[last_x_before_rim, rim],
[last_x_before_rim, last_y_before_rim],
[rim, last_y_before_rim]
], dtype=np.float32)
dst = np.array([
[rim+30, rim],
[last_x_before_rim-30, rim],
[last_x_before_rim, last_y_before_rim],
[rim, last_y_before_rim]
], dtype=np.float32)
print(f'src =\n{src}')
print()
print(f'dst =\n{dst}')
src =
[[ 10.000 10.000]
[ 389.000 10.000]
[ 389.000 289.000]
[ 10.000 289.000]]
dst =
[[ 40.000 10.000]
[ 359.000 10.000]
[ 389.000 289.000]
[ 10.000 289.000]]

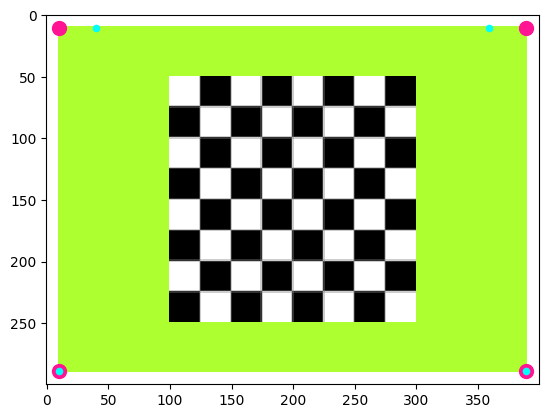

In the visualization below, the src points are shown as larger pink dots, while the transformed ones (dst), sort of as seen from a different perspective, are the smaller cyan dots:
plt.imshow(im, interpolation='none')
plt.scatter(src[:, 0], src[:, 1], color='deeppink', s=100)
plt.scatter(dst[:, 0], dst[:, 1], color='cyan', s=20)
plt.show()
We then use cv2.getPerspectiveTransform to obtain the transformation matrix:
M = cv2.getPerspectiveTransform(src, dst)
print(f'M =\n{M}')
M =
[[ 0.837 -0.113 32.531]
[-0.000 0.831 1.631]
[ 0.000 -0.001 1.000]]

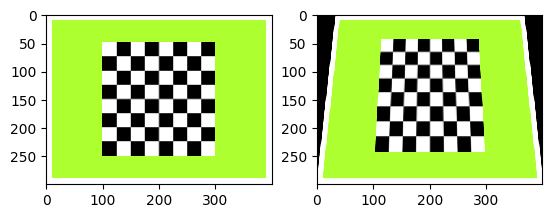

Having the matrix at hand, we pass it over to cv2.warpPerspective, together with the original image, the desired new image size, and the interpolation method to get the transformed version:
im_warped = cv2.warpPerspective(im, M, (w, h), flags=cv2.INTER_LINEAR)
_, (ax_original, ax_warped) = plt.subplots(1, 2)
ax_original.imshow(im, interpolation='none')
ax_warped.imshow(im_warped, interpolation='none')
plt.show()
For the second example, we would like to get an image rotated around the center of our green object. We start with some points around the origin (top left corner):
src_at_origin = np.array([[-2, -1], [2, -1], [2, 1], [-2, 1]], dtype=np.float32)
However, the goal is not to rotate around the origin, but rather around the center of the object. We will use some homogeneous transformations for that, and will start with defining the helper functions:
def rotation_matrix(theta):
c = np.cos(theta)
s = np.sin(theta)
return np.array([[c, -s], [s, c]])
def create_transform(t_x, t_y, theta):
translation = np.array([t_x, t_y])
rotation = rotation_matrix(theta)
transform = np.eye(3, dtype=float)
transform[:2, :2] = rotation
transform[:2, 2] = translation
return transform
def transform_points(transform, points):
n_points, dim = points.shape
x = np.ones((dim + 1, n_points))
x[:dim, :] = points.T
transformed = transform @ x
normalized = transformed[:dim, :] / transformed[-1, :]
return np.array(normalized.T, dtype=np.float32)
Let’s define two tranformations:
T_objtransforms the origin frame to the center of the green object;T_rotrotates a coordinate frame by a small angle, 0.2 radians to be exact.
T_obj = create_transform(w / 2, h / 2, 0)
T_rot = create_transform(0, 0, 0.2)
print(f'T_obj =\n{T_obj}')
print()
print(f'T_rot =\n{T_rot}')
T_obj =
[[ 1.000 -0.000 200.000]
[ 0.000 1.000 150.000]
[ 0.000 0.000 1.000]]
T_rot =
[[ 0.980 -0.199 0.000]
[ 0.199 0.980 0.000]
[ 0.000 0.000 1.000]]

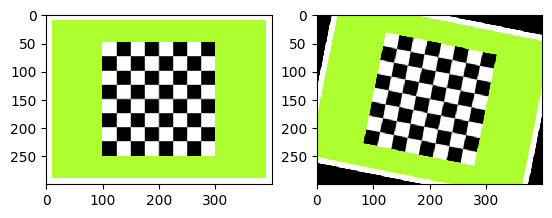

As the source points, we will move the points around the origin to be around the center (T_obj). For the destination points, we will apply T_obj first, followed by rotation T_rot, which is equivalent to the matrix multiplication T_obj @ T_rot:
src_at_center = transform_points(T_obj, src_at_origin)
dst_at_center = transform_points(T_obj @ T_rot, src_at_origin)
M_rot = cv2.getPerspectiveTransform(src_at_center, dst_at_center)
im_rotated = cv2.warpPerspective(im, M_rot, (w, h), flags=cv2.INTER_LINEAR)
_, (ax_original, ax_warped) = plt.subplots(1, 2)
ax_original.imshow(im, interpolation="none")
ax_warped.imshow(im_rotated, interpolation="none")
plt.show()

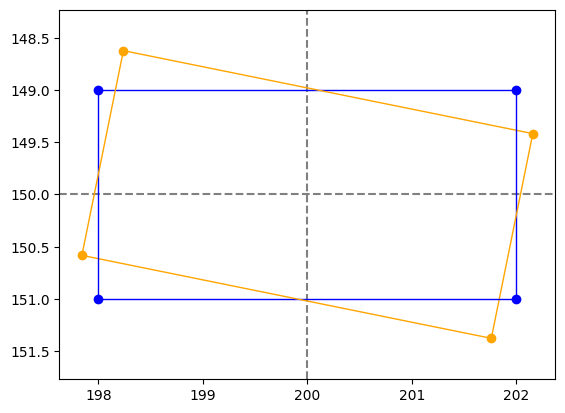

Below is a visualization of the pairs of source and destiation points used in the rotation example:
_, ax = plt.subplots()
ax.axis("equal")
ax.invert_yaxis()
ax.scatter(src_at_center[:, 0], src_at_center[:, 1], color='blue')
ax.scatter(dst_at_center[:, 0], dst_at_center[:, 1], color='orange')
ax.axhline(h / 2, color='gray', linestyle='--')
ax.axvline(w / 2, color='gray', linestyle='--')
for i, j in ((0, 1), (1, 2), (2, 3), (3, 0)):
ax.plot([src_at_center[i, 0], src_at_center[j, 0]],
[src_at_center[i, 1], src_at_center[j, 1]],
color='blue', linewidth=1)
ax.plot([dst_at_center[i, 0], dst_at_center[j, 0]],
[dst_at_center[i, 1], dst_at_center[j, 1]],
color='orange', linewidth=1)
plt.show()
